State Border NOTAM Elements: Precision Mapping Along International Boundaries

NOTAMs referencing international borders have long been a visualization nightmare. When you read "THEN COUNTERCLOCKWISE ALONG THE STATE BORDER TO THE POINT," how do you actually draw that? Today, Notamify handles these complex boundary-following instructions with precision.

The Challenge: Borders Aren't Straight Lines

Consider this real NOTAM from Poland (D8738/25):

NAV WRNG FOR AIRSPACE:
LATERAL LIMITS (WGS-84):
1. 550320N0184457E
2. 532856N0184613E
3. 522825N0193912E
4. 513316N0213143E
5. 504151N0214358E
6. 491941N0205255E
THEN COUNTERCLOCKWISE ALONG THE STATE BORDER TO THE POINT:
1. 550320N0184457E
VERTICAL LIMITS: GND-FL95

Six coordinate points define the eastern edge of a warning area. But the western closure? "COUNTERCLOCKWISE ALONG THE STATE BORDER." That's hundreds of kilometers of irregular international boundary that traditional NOTAM systems simply cannot render.

What Previous Systems Got Wrong

Before this update, systems would either:

• Ignore the instruction entirely - drawing a straight line from point X back to point 1
• Display text only - leaving pilots to manually trace borders on separate charts
• Approximate with rough lines - creating potentially misleading representations

For military activity warnings like D8738/25, inaccurate boundaries could mean the difference between a safe route and an inadvertent violation.

How Notamify Solves This

Our system now:

1. Recognizes Border References

When our AI encounters phrases like:

• "ALONG THE STATE BORDER"
• "COUNTERCLOCKWISE ALONG THE FIR BOUNDARY"
• "FOLLOWING THE COASTLINE"

It understands these aren't just text — they're geometric instructions requiring actual boundary data.

2. Retrieves Precise Border Geometry

We maintain high-resolution polygon data for:

• International state borders
• FIR/UIR boundaries
• Coastlines and maritime limits

When a NOTAM references the Polish state border, we have the actual coordinates — not approximations.

3. Calculates the Correct Segment

The instruction "COUNTERCLOCKWISE ALONG THE STATE BORDER" tells us:

• Start point: 491941N0205255E (point 6)
• End point: 550320N0184457E (point 1)
• Direction: Counterclockwise
• Path: Follow the actual border polygon

Our algorithm identifies the nearest border points, determines the counterclockwise path, and extracts precisely the segment needed.

4. Renders with Mathematical Precision

The result is a complete, accurate polygon showing:

• The explicitly defined eastern boundary (points 1-6)
• The border-following western closure
• Proper direction handling (clockwise vs counterclockwise)

Technical Implementation

The border-following feature extends our existing Compose Map Elements system:

1. Pattern Recognition: AI models identifie border-reference instructions
2. Boundary Lookup: System retrieves relevant border geometry
3. Point Matching: Algorithms find nearest border points to start/end coordinates
4. Path Extraction: Direction-aware traversal extracts the correct segment
5. Polygon Assembly: Border segment joins explicit coordinates into a closed shape

This works for any referenced boundary — state borders, FIR limits, or coastlines — in any direction.

Real-World Examples

This enhancement is particularly valuable for:

• Security warnings — frequent military activity NOTAMs along borders
• Maritime approach areas — restrictions following coastlines
• FIR boundary warnings — airspace advisories that follow FIR edges
• Cross-border military exercises — complex areas spanning multiple countries

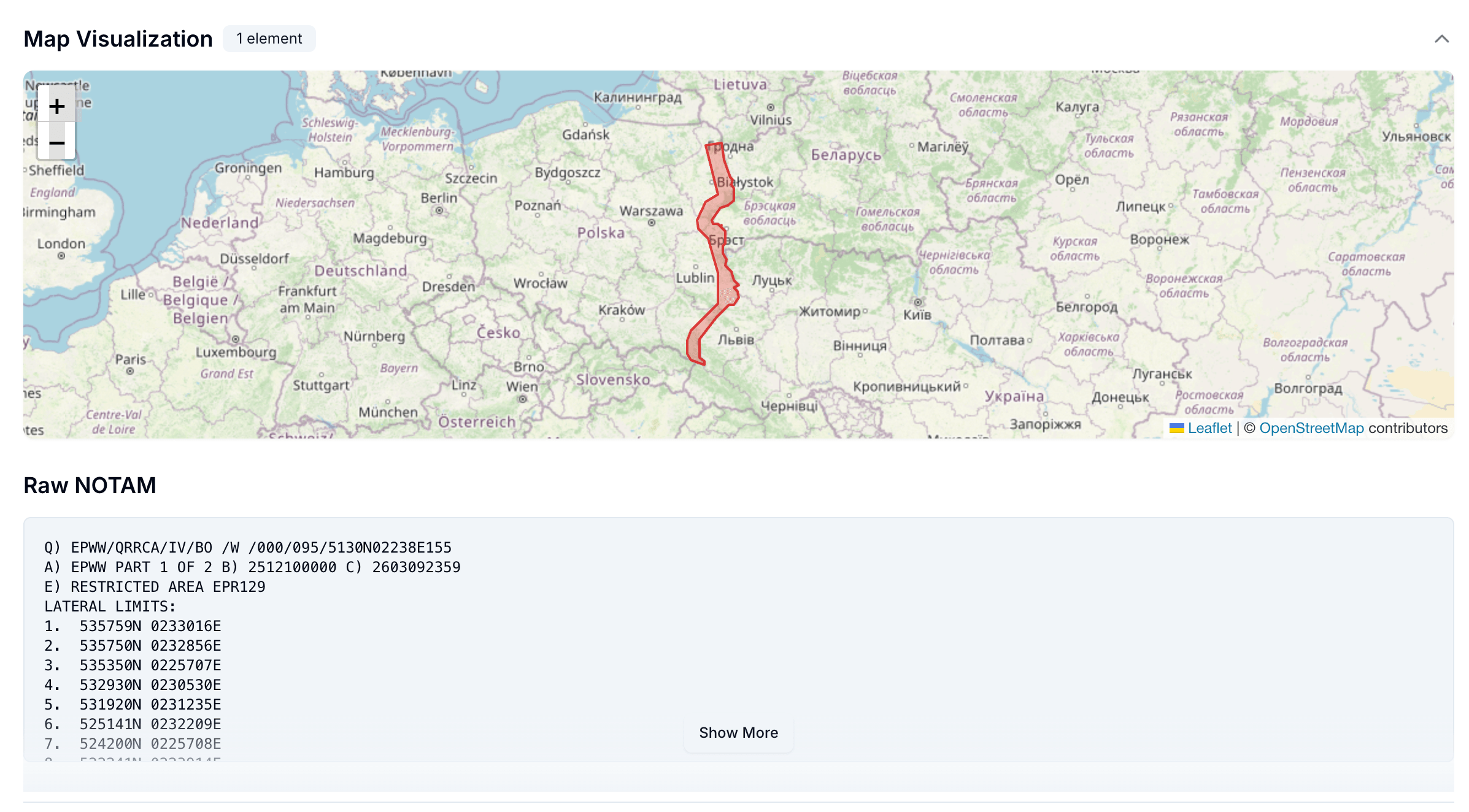

Restricted area EPR129 active with prohibitions and specified exemptions between

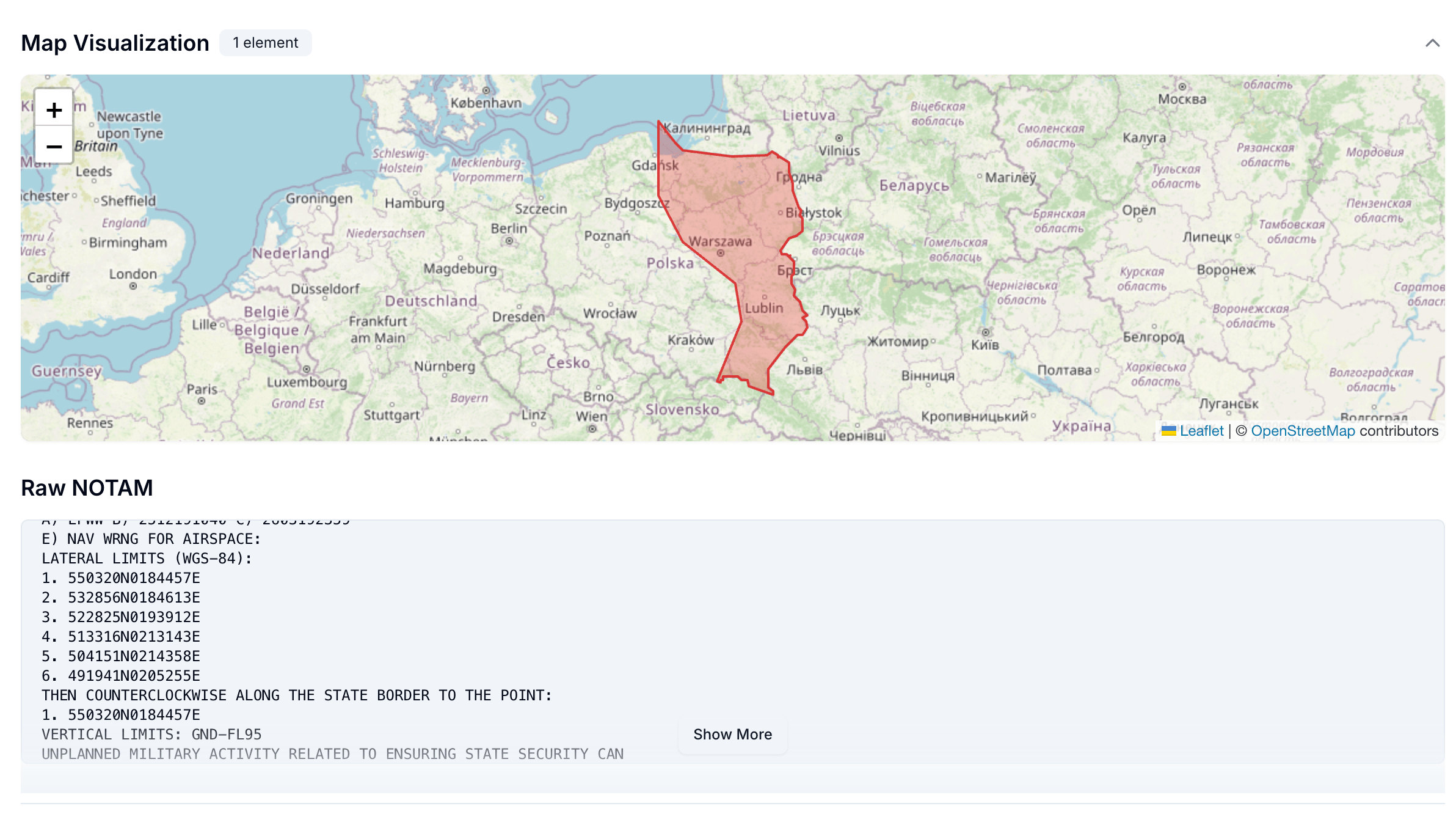

Advisory area established where unplanned military activity may occur

This feature is available now for all Notamify users. Try it with Polish NOTAMs →

---

Working with NOTAMs that reference unusual boundaries or have complex geometric definitions? Let us know through our feedback form — your real-world examples help us continue improving NOTAM visualization.
